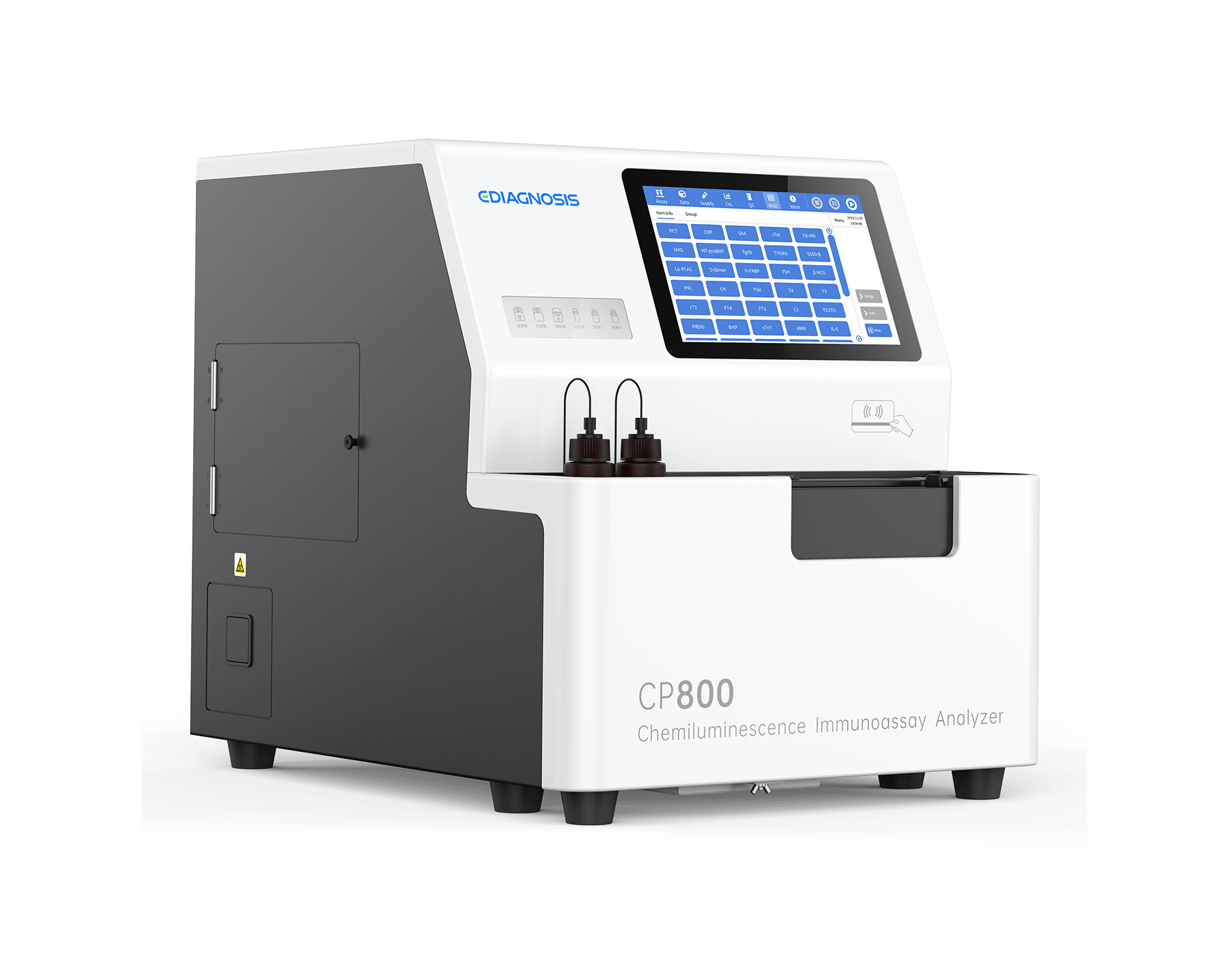

CP800

Chemiluminescence Immunoassay Analyzer

Watch Video
iPhone

Small

  • Compact design taking 0.28㎡ space only

Accurate

  • CLIA method, CV < 8%

Fast

  • Auto sampling and reaction, 2-13 minutes reaction time

Efficient

  • 36 sample positions with random STAT access

Instrument Specification

Category Specification
Test Principle Enzymatic magnetic particle chemiluminescence method
Sample Type Serum and plasma
Sample Positions 36
Reagent Positions 12
Throughput ≥120 T/h
First Report Time ≤13 min
Cuvettes Storage Loading Numbers 200
Carry Over ≤10 ppm

Test Menu

Test Item Sample Type/Volume Reaction Time Detection Range Storage (℃,months) Qualification
Inflammation
PCT Serum,20μL 13 min 0.02-100ng/mL 2-8℃, 12 NMPA CE
SAA Serum,20μL 20 min 0.1-100μg/mL 2-8℃, 12 NMPA CE
IL-6 Serum, 30μL 14 min 1.5-5000pg/mL 2-8℃, 12 NMPA CE
HBP Plasma 2.0-300ng/mL 2-8℃, 12 NMPA CE
CRP Serum,10μL 20 min 0.1-100μg/mL 2-8℃, 12 NMPA CE
Cardiac Marker
cTnl Serum,50μL 13 min 0.006-50ng/mL 2-8℃, 12 NMPA CE
cTnT Serum,50μL 13 min 8-10000pg/mL 2-8℃, 12 NMPA CE
CK-MB Serum,20μL 13 min 0.5-300ng/mL 2-8℃, 12 NMPA CE
MYO Serum,10μL 14 min 21-1500ng/mL 2-8℃, 12 NMPA CE
BNP Plasma, 50μL 13 min 10-5000pg/mL 2-8℃, 12 NMPA CE
NT-proBNP Serum, 10μL 13 min 25-30000pg/mL 2-8℃, 12 NMPA CE
D-Dimer Plasma, 25μL 13 min 0.1-20μg/mL 2-8℃, 12 NMPA CE
H-FABP Serum, 25μL 13 min 1-160ng/mL 2-8℃, 12 NMPA CE
ST2 Serum 1-200ng/mL 2-8℃, 12 NMPA CE
Thyroid Function
TSH Serum, 100μL 21 min 0.008-100μIU/mL 2-8℃, 12 NMPA CE
fT3 Serum, 50μL 21 min 0.5-30 pg/mL 2-8℃, 12 NMPA CE
T3 Serum, 30μL 21 min 0.20-6.50 ng/mL 2-8℃, 12 NMPA CE
fT4 Serum, 20μL 21 min 0.25-7.8 ng/dL 2-8℃, 12 NMPA CE
T4 Serum, 50μL 21 min 0.5-30 μg/dL 2-8℃, 12 NMPA CE
TgAb Serum, 50μL 24 min 10-4000 IU/mL 2-8℃, 12 NMPA CE
TPOAb Serum, 50μL 24 min 2-1000 IU/mL 2-8℃, 12 NMPA CE
Fertility
E2 Serum, 50μL 21 min 20-3000 pg/mL 2-8℃, 12 NMPA CE
TESTO Serum, 25μL 16 min 0.1-15 ng/mL 2-8℃, 12 NMPA CE
PROG Serum, 25μL 13 min 0.12-60 ng/mL 2-8℃, 12 NMPA CE
LH Serum, 25μL 24 min 0.2-200 mIU/mL 2-8℃, 12 NMPA CE
FSH Serum, 20μL 24 min 0.2-200 mIU/mL 2-8℃, 12 NMPA CE
PRL Serum, 10μL 13 min 0.25-400 ng/mL (5.3-8480 uIU/mL) 2-8℃, 12 NMPA CE
β-HCG Serum, 20μL 20 min 0.5-6000 mIU/mL 2-8℃, 12 NMPA CE
AMH Serum, 50μL 13 min 0.02-23 ng/mL 2-8℃, 12 NMPA CE
Tumor Marker
CEA Serum, 10μL 23 min 0.2-1000ng/mL 2-8℃, 12 NMPA CE
CA125 Serum, 20μL 23 min 1-3000U/mL 2-8℃, 12 NMPA CE
CA15-3 Serum, 10μL 23 min 1-300U/mL 2-8℃, 12 NMPA CE
CA19-9 Serum, 20μL 23 min 1-1000U/mL 2-8℃, 12 NMPA CE
CA72-4 Serum, 10μL 23 min 0.5-300U/mL 2-8℃, 12 NMPA CE
Cyfra21-1 Serum, 10μL 23 min 0.25-500ng/mL 2-8℃, 12 NMPA CE
NSE Serum, 10μL 23 min 0.1-300ng/mL 2-8℃, 12 NMPA CE
SCC Serum, 30μL 23 min 0.2-70ng/mL 2-8℃, 12 NMPA CE
AFP Serum, 10μL 30 min 0.50-1000 IU/mL 2-8℃, 12 NMPA CE
*t-PSA Serum, 20μL 23 min 0.02-100 ng/mL 2-8℃, 12 NMPA CE
*fPSA Serum, 20μL 23 min 0.016-30 ng/mL 2-8℃, 12 NMPA CE
Brain Injury Marker
S100-β Serum, 50μL 13 min 0.05-10ng/mL 2-8℃, 12 NMPA CE

Product Advantages

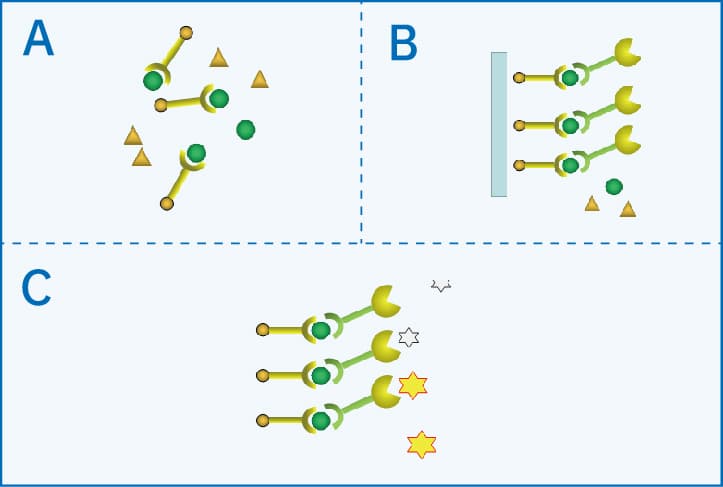

Sensitive and stable magnetic beads immunolu minescence technology CV < 8%

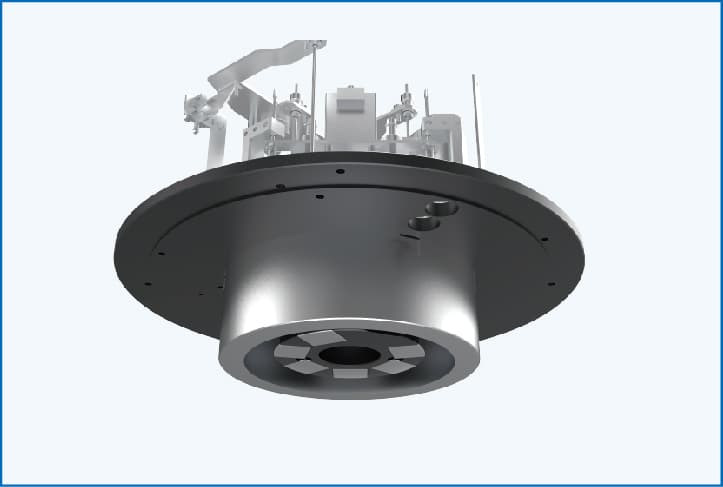

3-stage magnetic sepration with consistent performance reliability

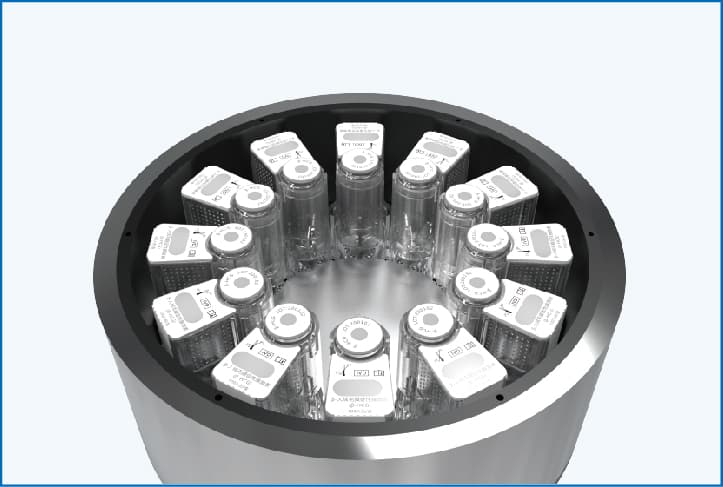

12 reagent positions with refrigeration

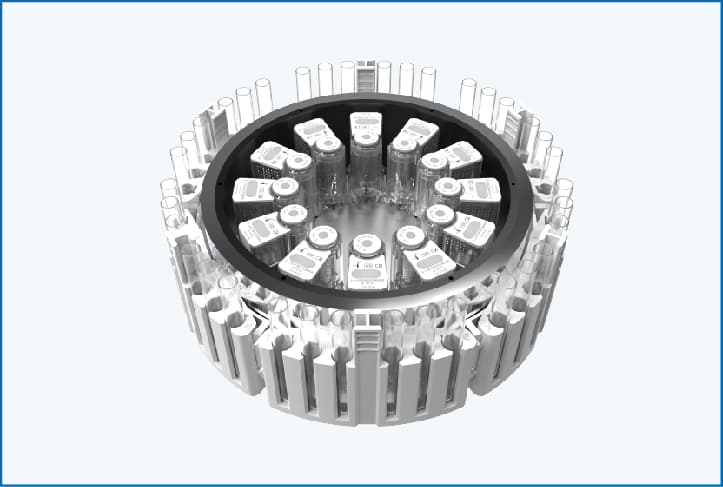

36 sample position with random STAT access.

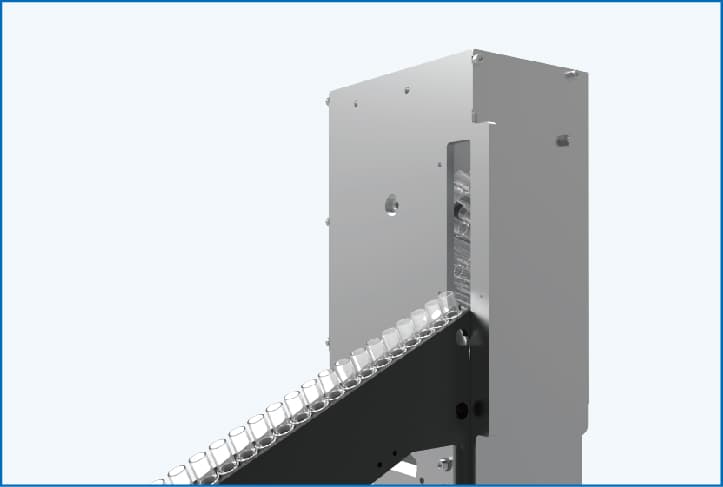

Continuous curettes loading with automatic arranging

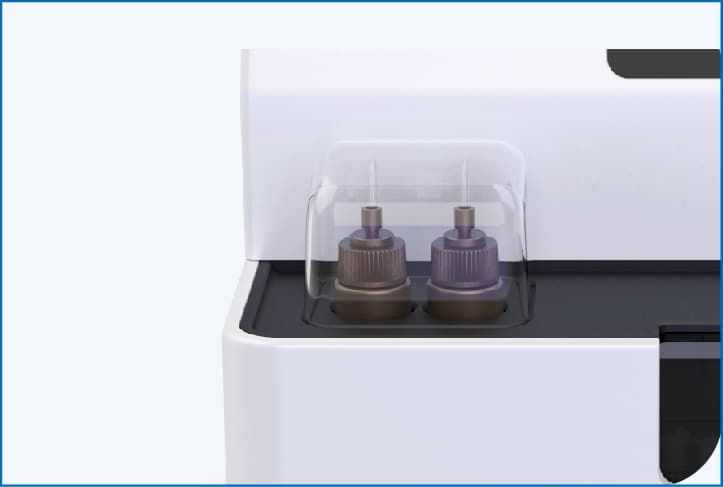

Dual substrates with auto switch
