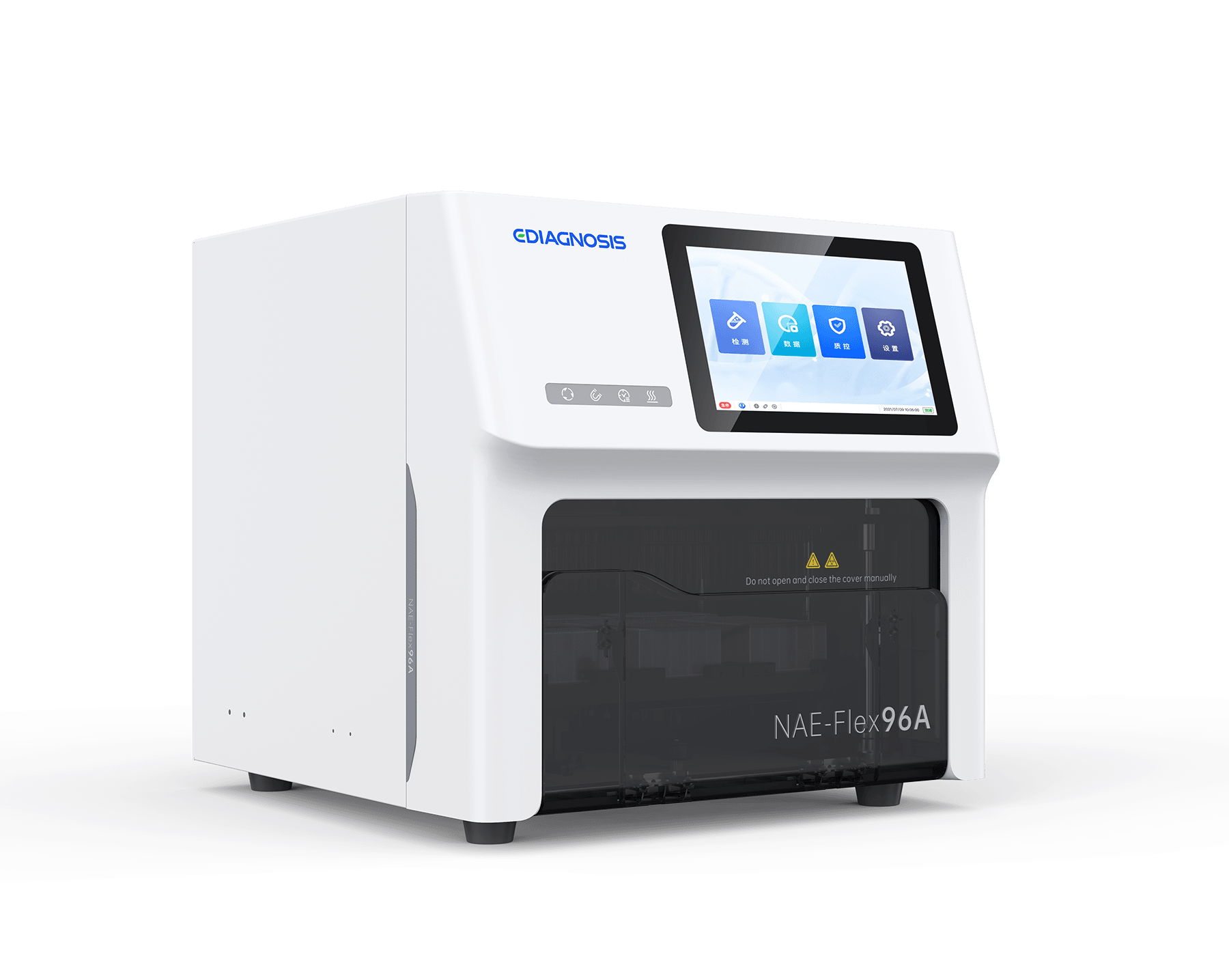

NAE-FLEX96A

Nucleic acid Extraction and Purification Instrument

iPhone

Safety

  • Circulating air system with HEPA filter
  • Equipped with UV lamp

User-friendly

  • Ready-to-use reagents
  • No need for an external computer

Rapid & Efficient

  • Finish sample processing in 20 mins
  • High through-put, from 1 to 96 samples
  • Fast heating rate

Instrument Specification

Product Model NAE-FLEX96A
Sample Type Blood, serum, plasma, cells, saliva, swab preservation fluid, tissue, urine, tissue samples
Test Principle Magnetic bead
Test Capacity 1-96 sample
Operation System Linux
Screen 10 inches (resolution 1024*768)
Reaction Module 1-8/16/32/48/96, multi-channel extraction
Operation Temperature 10°C-40°C
Operating Humidity <80%
Reaction Time ≤ 20min
Magnetic Bead Recovery >99%
Dimension 600*465*520mm
Weight 56 Kg
Processing Volume 20-1000uL
Temperature Module Room temperature~105℃
Well-to-well CV CV<3%
Sterilization UV light
Instrument Port USB
Power Supply AC 220V 50Hz, 600VA

Reagent

Product Name Package Sample Type Shelf Life

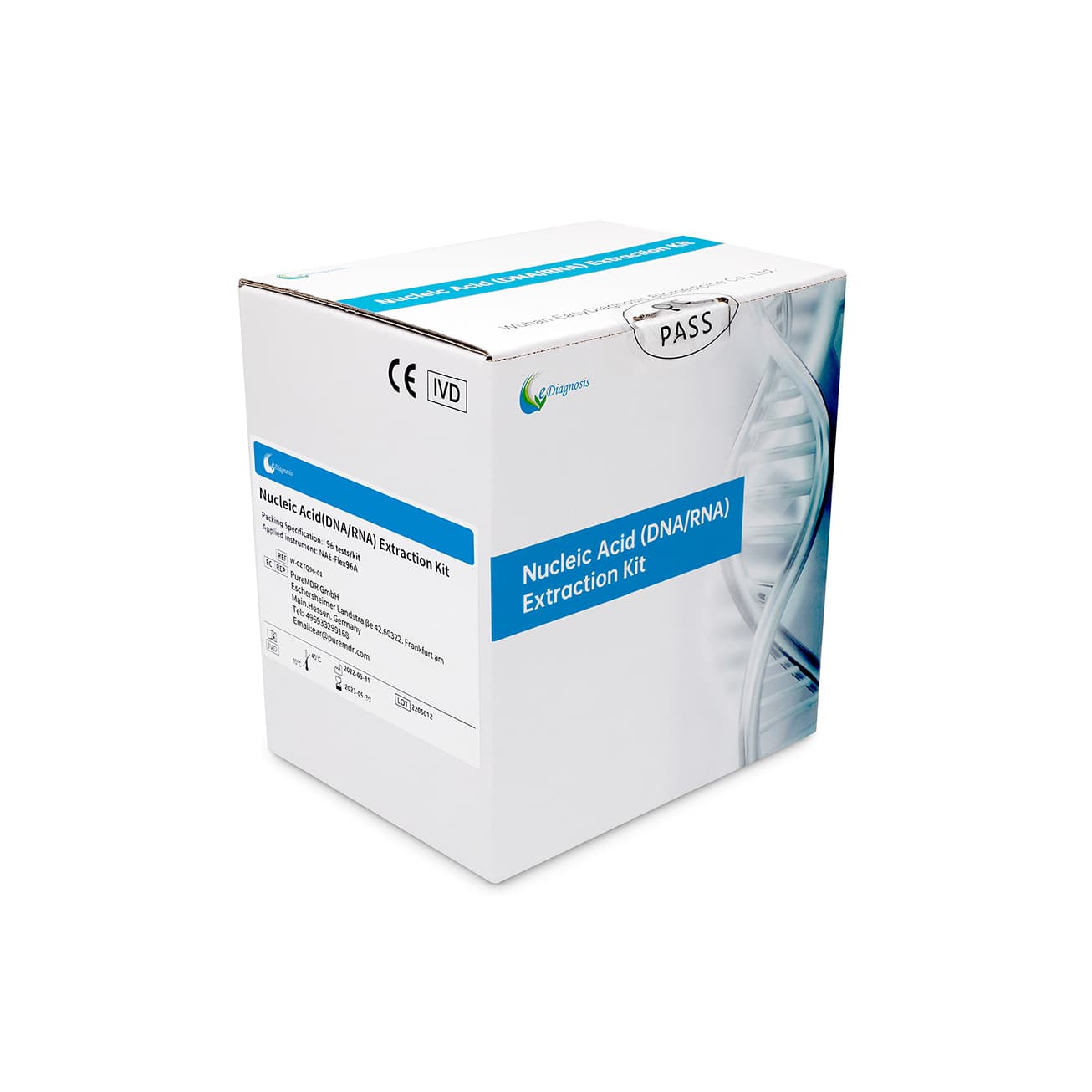

Nucleic Acid (DNA/RNA) Extraction Kit 96 tests/kit, 192 tests/kit, 384 tests/kit Liquid samples tissue sample 12 months(10°C-40C)

Package

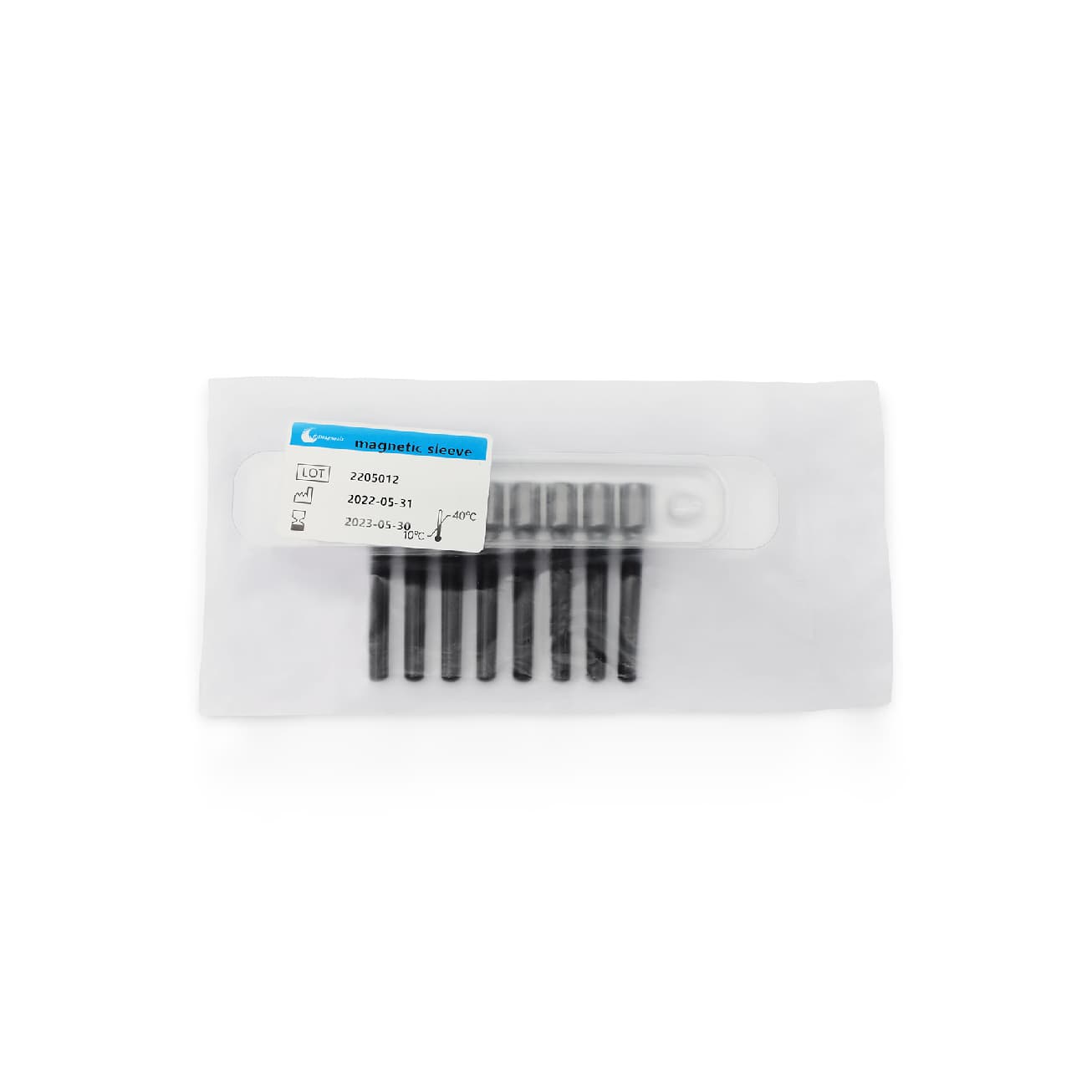

Magnetic Sleeve

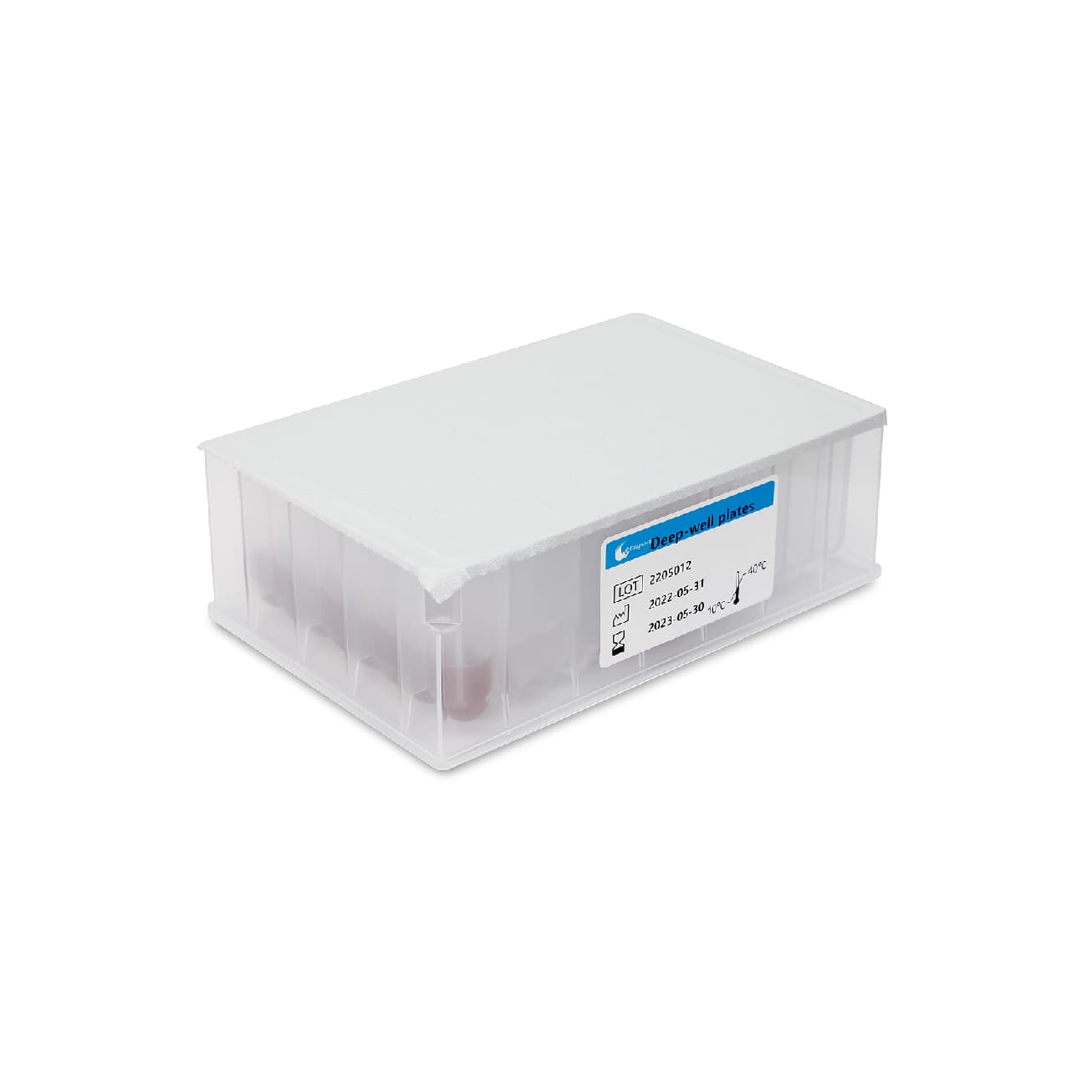

Deep-well Plates
