Specifications

Measurement Principle Ion-exchange HPLC
Test Mode Standard mode / Variant mode
Throughput Standard mode: 60s / test
Variant mode: 96s / test
Measurement Items HbA1c, HbA1 and HbF
Measurement range HbA1c: 3% - 20%

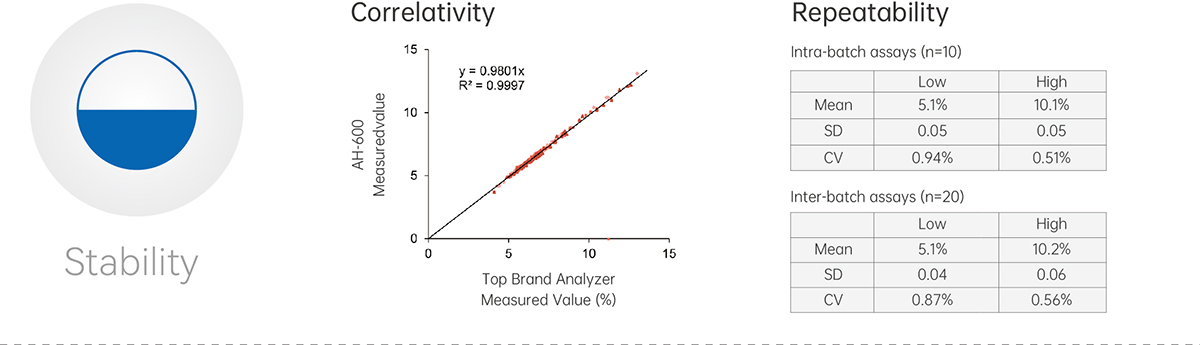

Repeatability CV≤1.0%
Sample Type Whole blood and diluted blood
Sample Management LIS loading, barcode scanning
Sample Loading Capacity 10 samples/rack× 9 racks. Continuous circulating rack sampling system
STAT STAT priority

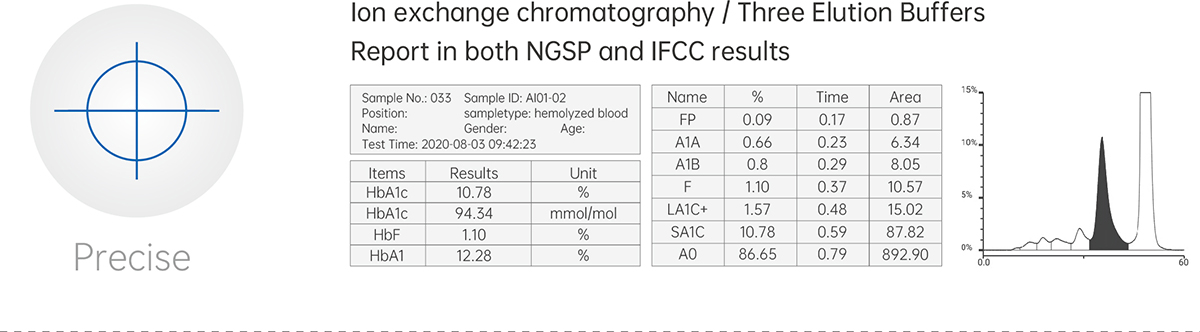

HbA1c Report Form In both graphic and value repot with IFCC（mmol/mol）and NGSP(%) results
Consumable Elution buffer, hemolysis & wash solution, column, filter, calibrator, control
Reagent Management RFID scanning，automatically loading info of lot, expiry date and remains, etc
Operation Interface English operation software, HDMI touch screen
User Management Authorization set for different levels
Data storage 100,000 results. Available for statistics, online queries, data backup, data export
Export & Communication RS-232 (Bi-directional). Built-in thermal printer
Maintenance Automatic maintenance in startup and off, alarm and error indication, daily maintenancereminder & guidance
Power Supply AC120~240V, 50/60Hz, 24V/15A
Dimensions & Weight 560(L) × 590(W) × 490(H)mm, 45kg
