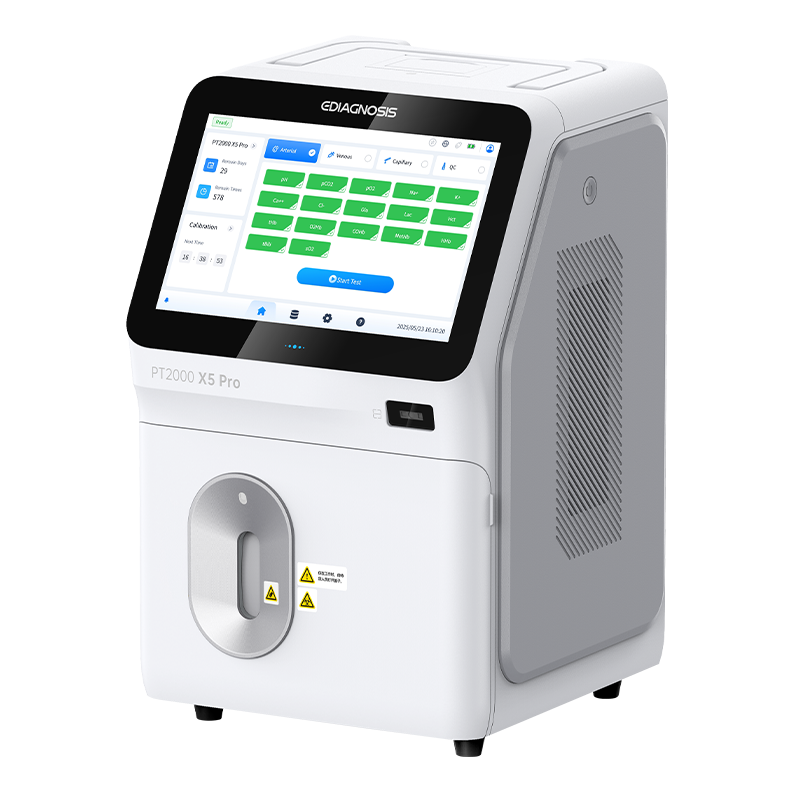

PT2000

Portable Blood Gas and Chemistry Anolyzer

GA1200 Portable Blood Gas & Chemistry Analyzer
Fast, Accurate, Portable Point-of-Care Testing

Key Features

  • Rapid Testing: Results in < 1 minute
  • Minimal Sample: Only 85μL whole blood required
  • Multi-parameter: Up to 12 parameters per test
  • Easy Operation: Intuitive touchscreen interface
  • Portable Design: Lightweight (3.8kg) with built-in battery
  • Quality Control: Automatic internal QC checks
  • Data Management: Built-in storage for 10,000 results

Performance Specifications

Parameter Range Precision
pH 6.50 - 8.00 ±0.01 pH
pCO₂ 1.0 - 20.0 kPa ±0.1 kPa
pO₂ 0.0 - 80.0 kPa ±0.2 kPa
Na⁺ 100 - 180 mmol/L ±1.0 mmol/L
K⁺ 0.1 - 9.9 mmol/L ±0.1 mmol/L

Cartridge Model

PTII-3 PTII-4L PTII-4H PTII-5 PTII-6E PTII-6P PTII-8 PTII-9 PTII-10 PTII-12TY PTII-13 PTII-16 PTII-17
pH ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
pO₂ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
pCO₂ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Na⁺ ✓ ✓ ✓ ✓ ✓ ✓
K⁺ ✓ ✓ ✓ ✓ ✓
Ca²⁺ ✓ ✓ ✓ ✓ ✓ ✓
Cl⁻ ✓ ✓ ✓ ✓ ✓ ✓
Glu ✓ ✓ ✓ ✓ ✓
Lac ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Hct ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
tHb ✓ ✓ ✓ ✓
COHb ✓ ✓ ✓ ✓
MetHb ✓ ✓ ✓ ✓
O₂Hb ✓ ✓ ✓ ✓
HHb ✓ ✓ ✓ ✓
sO₂ ✓ ✓ ✓ ✓
tBili ✓ ✓
*Crea ✓ ✓
*BUN
*Mg²⁺
*Coming soon

Calculated parameter

cH⁺, cH⁺(T), pH(T), pCO₂(T), pO₂(T), HCO₃⁻ act, HCO₃⁻ std, BB(B), BE(B), BE(ecf), ctCO₂, Ca⁺⁺(7.4), sO₂(est), AnGap, tHb(est),
pO₂(A-a), pO₂(A-a) (T), pO₂(a/A), pO₂(a/A) (T), RI, RI (T), pO₂/FiO₂, pO₂(T)/FiO₂, PAO₂, pO₂(A,T), CaO₂, CvO₂, p50, p50(T), p50(st),
ctO₂(a-v), Qs/Qt, ctO₂, ctCO₂(P), pH(st), mOsm, pCO₂(gap), BEact, mOsmgap, Gap, Lacclearance, and 40 test items in total
