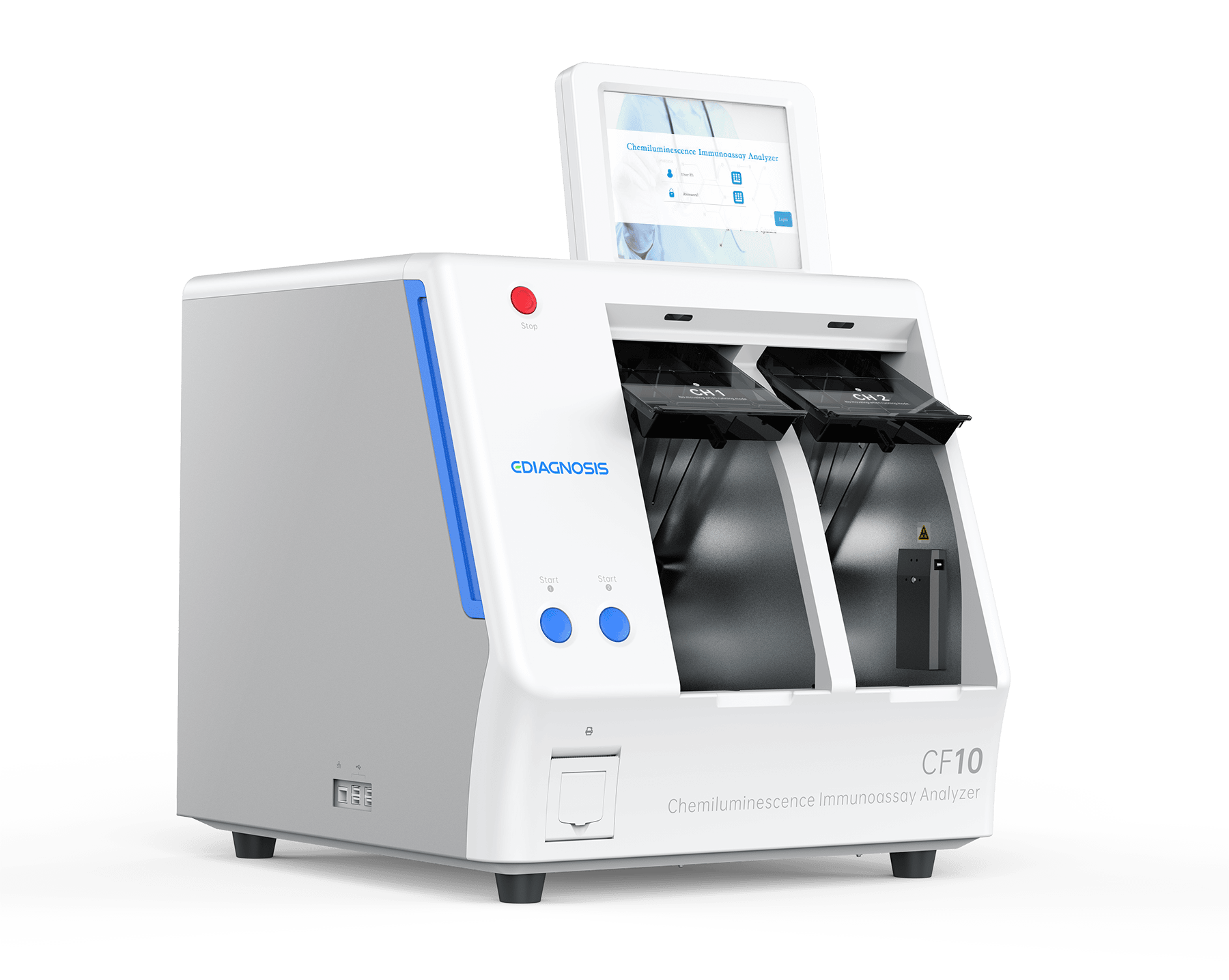

CF10

Chemiluminescence Immunoassay Analyzer

iPhone

Accurate

  • CLIA method POCT device with pg level sensitivity

Fast

  • Whole blood sample, 12 tests in 15 minutes

Easy

  • Independent dual chamber design with 6-channels in each one

Efficient

  • All in one test cartridge ready to use, no standby reagent consumption

Instrument Specification

Category Specification
Throughput 36 T/h
Sample Volume 50 μL
Test Principle CLIA
Sample Position Up to 12 samples
Measuring Time 15 minutes for 12 samples
Operating Temperature 10°C-30°C
Sample Type Whole blood, serum, plasma
Dimension & Weight 560*546*600mm, 50 kg

Test Menu

Test Item Sample Type/Volume Reaction Time Detection Range Storage (°C, months) Qualification
Inflammation
PCT Serum, whole blood, 70-150μL 15 min 0.05-100ng/mL 2-8°C, 12 NMPA CE
IL-6 Serum, whole blood, 70-150μL 15 min 2-5000pg/mL 2-8°C, 12 NMPA
HBP Plasma, whole blood, 70-150μL 15 min 2-300ng/mL 2-8°C,12 NMPA
Cardiac Marker
CK-MB Serum, whole blood, 70-150μL 15 min 0.5-300ng/mL 2-8°C,12 NMPA CE
hs-cTnl Serum, whole blood, 70-150μL 15 min 0.01-50ng/mL 2-8°C,12 NMPA CE
hs-cTnT Serum, whole blood, 70-150μL 15 min 8-10000pg/mL 2-8°C,12 NMPA
BNP Plasma, whole blood, 70-150μL 15 min 10-5000pg/mL 2-8°C,12 NMPA
NT-proBNP Serum, whole blood, 70-150μL 15 min 25-30000pg/mL 2-8°C,12 NMPA
MYO Serum, whole blood, 70-150μL 15 min 21-1000ng/mL 2-8°C,12 NMPA CE
D-Dimer Plasma, whole blood, 70-150μL 15 min 0.1-10μL/mL FEU 2-8°C,12 NMPA
ST2 Serum, whole blood, 70-150μL 15 min 1-200ng/mL 2-8°C,12 CE
Brain Injury Marker
S100-β Serum, whole blood, 70-150μL 15 min 0.05-10ng/mL 2-8°C,12 NMPA

Operation

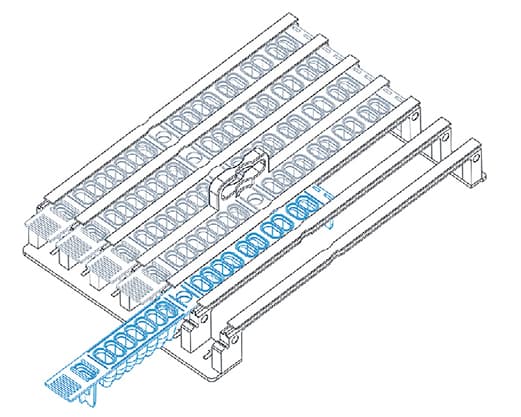

1. Add sample to cartridge strip

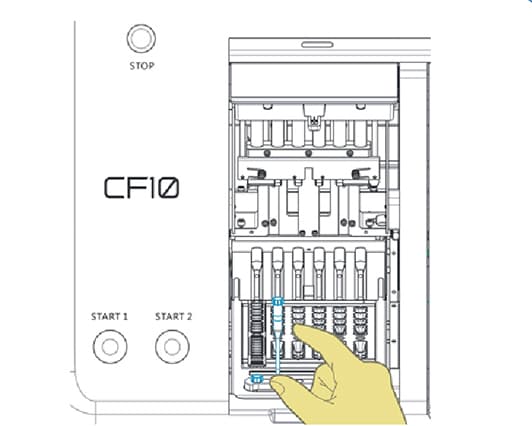

2.Load cartridge into instrument

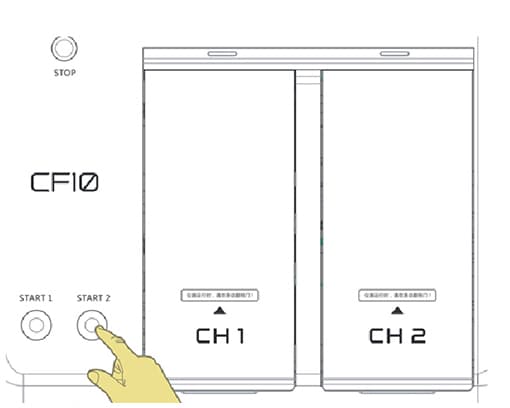

3.Start the test
