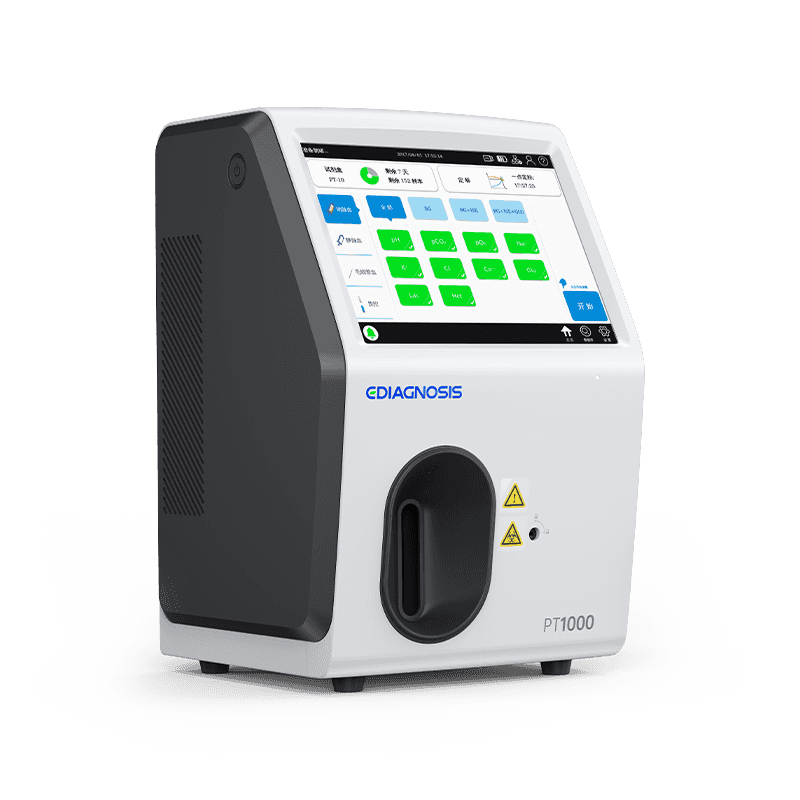

PT1000

Blood Gas Analyzer

Watch Video
iPhone

All-in-one Cartridge:

  • No fluidics in instrument, maintenance free
  • Self-contained calibration, cleaning solution and biohazard waste collection pack
  • Optimized cartridge design minimizes clot formation

Easy Operation:

  • Touch-screen with intuitive prompts
  • Simple 4-step process, easy to use
  • Supports HL7 protocol for LIS/HIS

High Efficiency:

  • Revolutionary microsensor technology, 33 parameters in only 60 seconds
  • Automatic calibration and continuous system performance monitoring
  • Built in printer, print results automatically after detection

Ultimate Flexibility:

  • Compact size for various units (ICU, ED, OR, etc.)
  • Convenient handle, easy to carry
  • Built-in battery, 4 hours back-up

Instrument Specification

Category Specification
Throughput Results in 60 seconds after sample aspiration
Sample Volume 150µL
Operation Environment 10 °C - 31 °C
Power Supply AC 100-240V, 50Hz/60Hz
Dimensions & Net Weight 260 * 270 * 410 mm, 9.5Kg
Display 10.4-inch color LCD touch screen display, resolution 1024*768
Battery Lithium-ion battery 14.8v / 6500mAh
Accessory Barcode scanner
Interface 4*USB 2.0 host, WLAN
Parameter 100000+ Tests
Communication Link Supports HL7 protocol for LIS/HIS

Test Menu

Measurement Parameters (10 ltems)

Parameter Unit Reportable Range Precision (CV)
pH 6.8-8.0 SD≤0.02
pO2 mmHg 20-600 CV≤7.5%
pCO2 mmHg 15-130 SD≤2.5mmHg
Na+ mmol/L 100-180 CV≤1.5%
K+ mmol/L 2.0-9.0 SD≤0.25mmol/L
Ca+ mmol/L 0.25-2.5 SD≤0.15mmol/L
ci- mmol/L 70-150 CV≤5%
Glu mmol/L 1.1-27 CV≤5%
Lac mmol/L 0.3-17 CV≤7.5%
Hct %PCV 20%-70% CV≤3%

Calculation Parameters (23 items)

cH+, cH+(T), pH(T), pCO2(T), pO2(T), HCO3-act, HCO3-std, BB(B), BE(B), BE(ecf), CtCO2, Ca++(7.4), sO2(est), AnGap, tHb(est), pO2(A-a), pO2(A-a) (T), pO2(a/A), pO2(a/A) (T), RI, Rl(T), pO2/FIO2, pO2(T)/FIO2

Operation

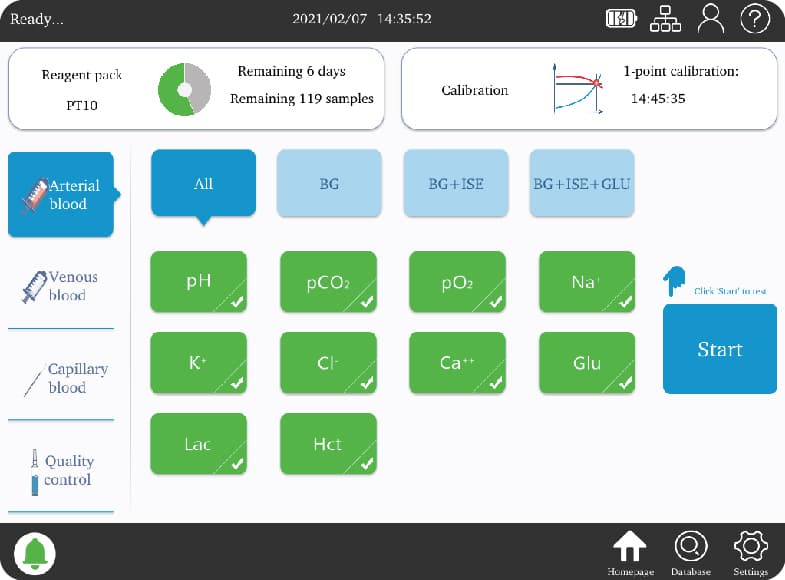

1. Choose items and click "Start" to take the test.

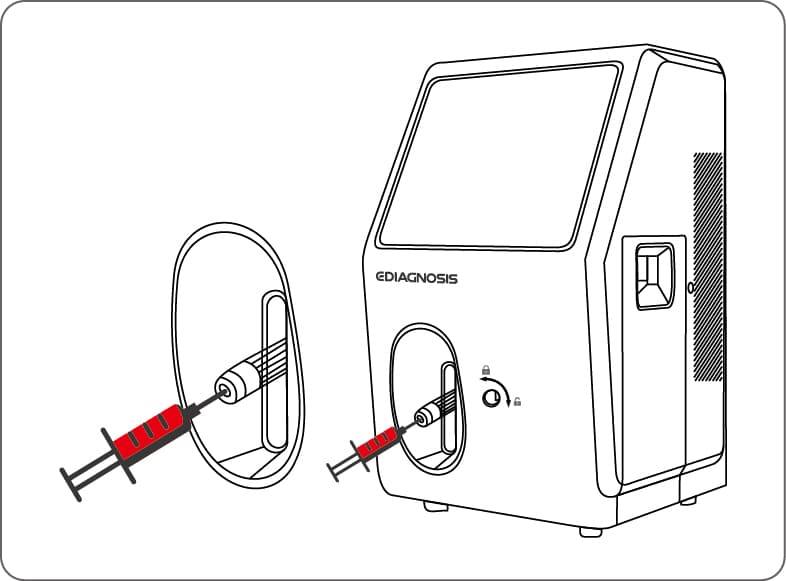

2.Auto aspirate the sample to be tested.

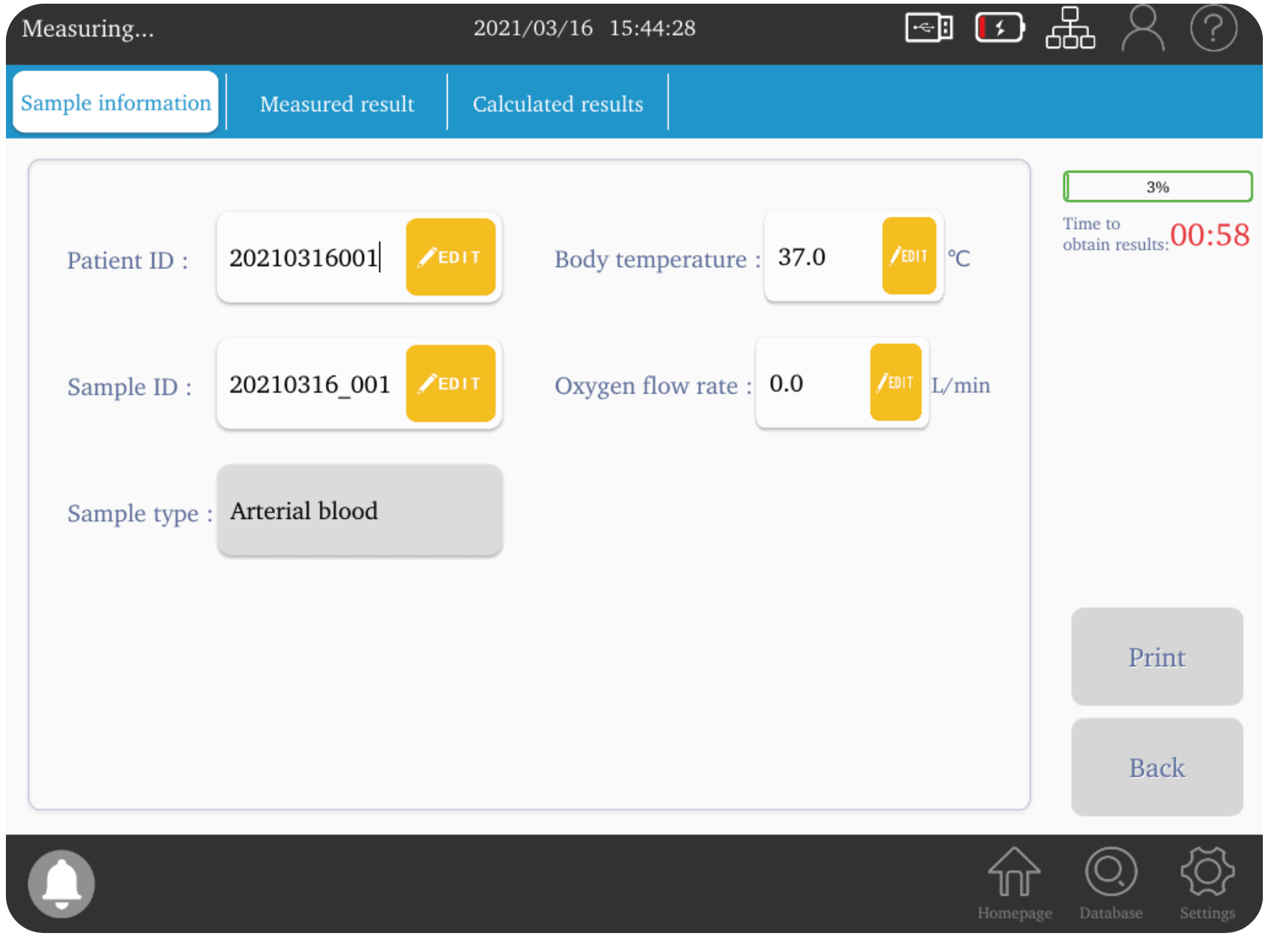

3.Scan or enter patient ID.

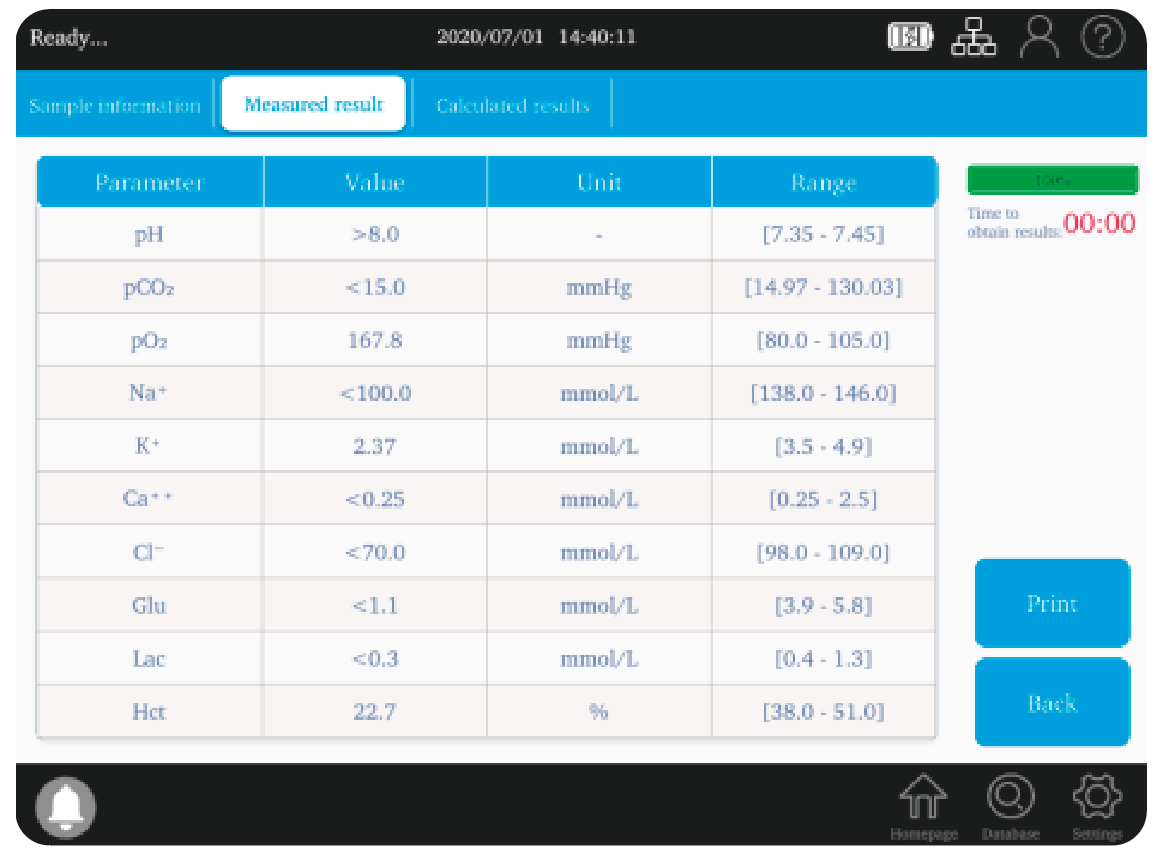

4.Wait for 60s and print test results.
