DN-X Series

Electrolyte Analyzer

iPhone

High Efficiency

  • 8 parameters：K+, Na+, Cl-, Ca2+, pH, n-Ca, T-Ca, Li+
  • Get result in 25s, 40 tests per hour

Accurate Detection

  • Sensitive and long life electrode
  • *with one-year warranty for electrode

Flexible & Cost Control

  • 2 types of reagent: All-in-one Cartridge Type, Bottle Type
  • Low cost of test consumption
  • Auto standby mode, reduce reagent consumption

Easy Operation

  • Auto fluidic flushing system
  • Support barcode reader
  • Easy data management, LIS supports

Product specifications

Item Content
Throughput Get result in 25s, 40 tests per hour
Sample Volume 60uL - 150uL
Test Method ISE (Ion Selective Electrode Method)
Sample Type Serum, plasma, whole blood, cerebrospinal fluid and diluted urine
Demension &Net weight 420*320*280mm, 7.5kg
Power Supply AC100-240V, 50Hz/60Hz
Display 5 inches IPS touchable screen
Operation Condition 5 - 40℃，≤85% RH, 760 - 1060hPa
Communication Link LIS System
Interface RS232-C
Printing Mode Built in thermal printer
Accessory Barcode Scanner

Technical parameter

Measurement range and accuracy

Parameter Accuracy(B) Precision(CV) Linear Stability(R) Contamination Rate
Section/(Mmol/l) Deviation(D) CorrelationCoefficient(r)
K+ ≤3.0% ≤1.0% 1.50-7.50 ≤3.0% ≥0.995 ≤2.0% ≤1.5%
Na+ ≤3.0% ≤1.0% 100.0-180.0 ≤3.0% ≥0.995 ≤2.0% ≤1.5%
Cl- ≤3.0% ≤1.0% 80.0-160.0 ≤3.0% ≥0.995 ≤2.0% ≤1.5%
Ca2+ ≤5.0% ≤1.0% 0.50-2.50 ≤5.0% ≥0.995 ≤3.0% ≤2.0%
Li+ ≤5.0% ≤1.0% 0.50-2.50 ≤3.0% ≥0.995 ≤2.0% ≤2.0%
pH ≤3.0% ≤3.0% 7.00-9.00(unitless) ≤5.0% ≥0.995 ≤3.0% ≤2.0%

Model

DN-X3: K+, Na+, Cl-

DN-X4: K+, Na+, Cl-, Li+

DN-X5: K+, Na+, Cl-, Ca2+, pH

DN-X6: K+, Na+, Cl-, Ca2+, pH, Li+

Sample type

Serum, plasma, whole blood, cerebrospinal fluid and diluted urine

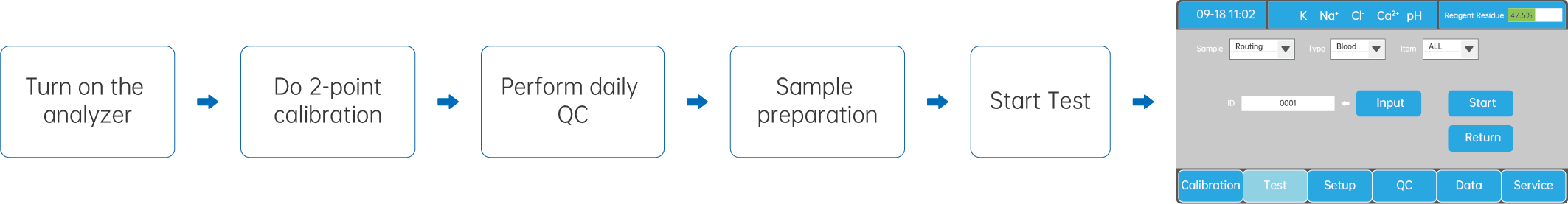

Test Procedure
