Specifications

Measurement Principle Ion-exchange HPLC
Test Mode Standard mode / Variant mode
Throughput Standard mode: 60s / test
Variant mode: 96s / test
Measurement Items HbA1c, HbA1, HbF, eAG
Measurement range HbA1c: 3% - 20%

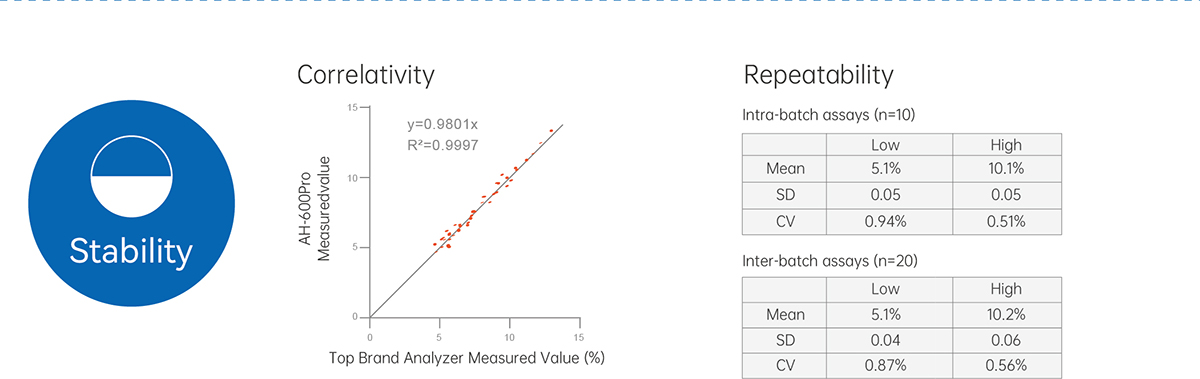

Repeatability CV≤1.0%
Sample Type Whole blood and diluted blood
Sample Volume Whole blood: 3μL, diluted blood: 4μL
Sample Management LlS loading, barcode scanning
Sample Position 20 samples (2 carousel sampler, each carousel sampler can load 20 samples)
Sampling Method Carousel sampler loading, puncture aspiration

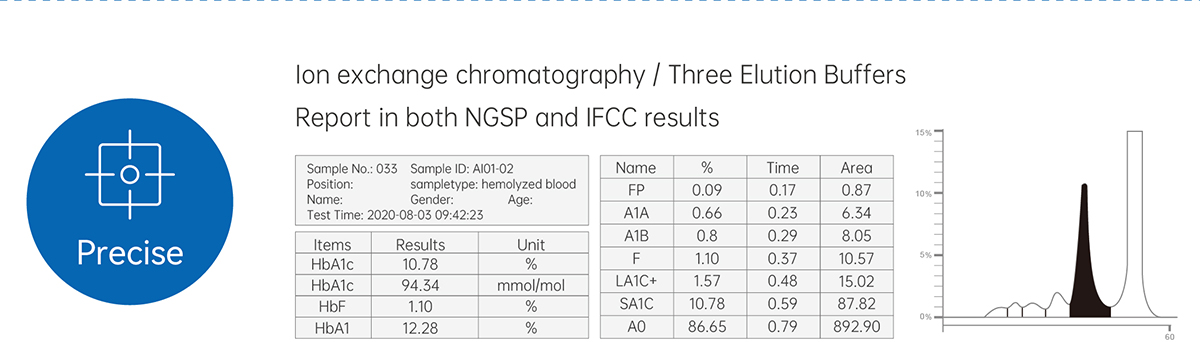

Result Report Form Graphic report: both chromatogram and test result
HbA1c Report Form In both graphic and value repot with lFCC(mmolmol) and NGSP(%) results
Consumable Elution buffer, hemolysis & wash solution, column, filter, calibrator, control
Reagent Management RFID scanning,automatically loading info of lot, expiry date and remains, etc

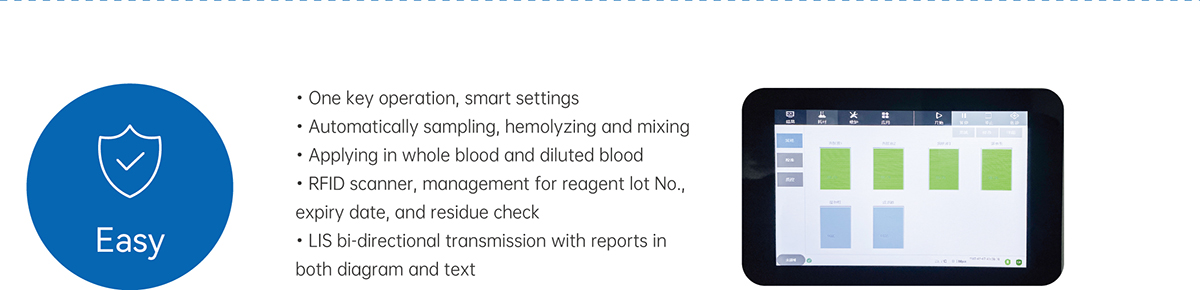

Operation Interface 8 inches touch screen
Storage Capacity 100,000 results. Available for statistics, online queries, data backup, data export
Export & Communication Bi-directional LIS, USB port, Ethernet interface, Built-in thermal printer
Maintenance Automatic maintenance in startup and off, alarm and error indication, daily maintenance reminder & guidance
Power Supply AC120~240V, 50/60Hz, 24V/15A
Dimensions & Weight 306 (L) × 466 (W) × 435 (H)mm, 20kg
